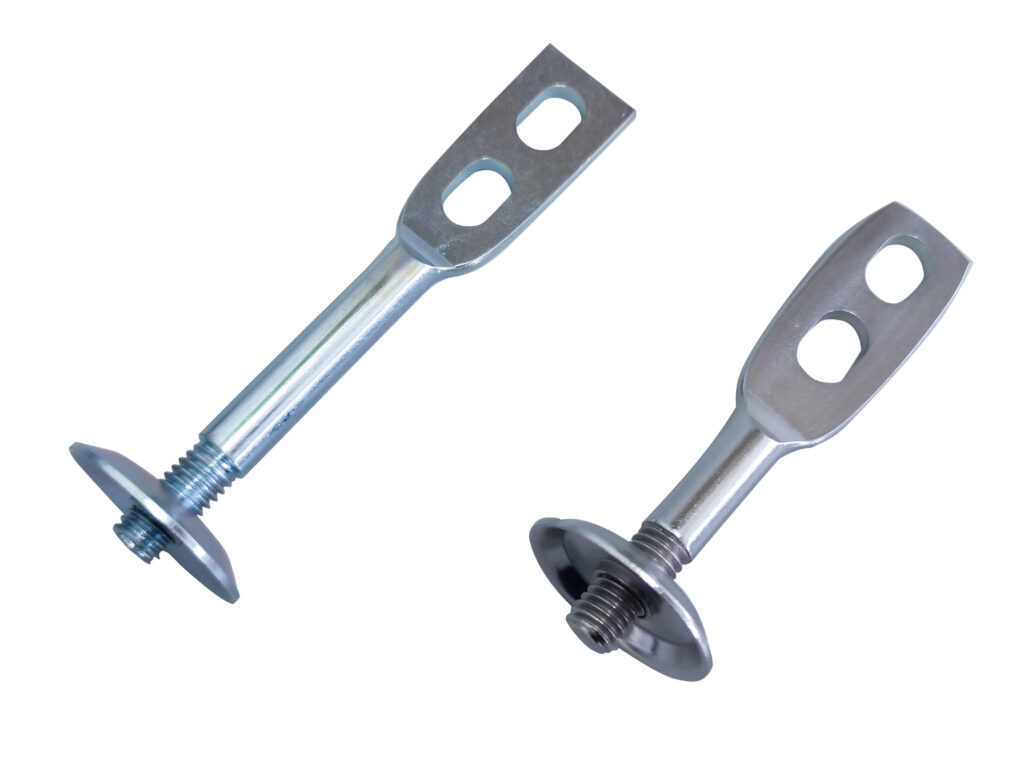

座付羽子板ボルト
▼ユニクロメッキ製
図面をダウンロード
| 品番 | 規格 | H | W | T | 穴 [фA×B] | d | P | фD | 入数 |
|---|---|---|---|---|---|---|---|---|---|
| ZHB 30 | 30 | 30 | 22 | 3.0 | 9×14 | w3/8 | --- | 38 | 700 |
| ZHB 50 | 50 | 50 | 20 | 550 | |||||
| ZHB 65 | 65 | 65 | 500 | ||||||
| ZHB 75 | 75 | 75 | 400 | ||||||
| ZHB 100 | 100 | 100 | 350 | ||||||
| ZHB 125 | 125 | 125 | 250 | ||||||
| ZHB 150 | 150 | 150 | 200 | ||||||
| ZHB 200 | 200 | 200 | 150 |
ステンレス SUS304製
| 品番 | 規格 | H | W | T | 穴 [фA×B] | d | P | фD | 入数 |
|---|---|---|---|---|---|---|---|---|---|
| S-ZHB 30 | 30 | 30 | 22 | 3.0 | 9×14 | w3/8 | --- | 38 | 700 |
| S-ZHB 50 | 50 | 50 | 20 | 550 | |||||
| S-ZHB 65 | 65 | 65 | 500 | ||||||
| S-ZHB 75 | 75 | 75 | 400 | ||||||
| S-ZHB 100 | 100 | 100 | 350 | ||||||
| S-ZHB 125 | 125 | 125 | 250 | ||||||
| S-ZHB 150 | 150 | 150 | 200 | ||||||
| S-ZHB 200 | 200 | 200 | 150 |
